Introduction
You will probably be very surprised to learn that there are no fixed industry standards for testing the 'raw' speaker drivers. Yes, that's right. There is no standard temperature, humidity, test baffle, anechoic chamber and other factors. So, the numbers you see are pretty much the way most manufacturers want them to look. This is why speaker cabinet design programs don't work. Even if they were well designed, the numbers you put in the program are generalizations at best.
And the fact is, when we do prototype testing of hundreds of different models, the speaker that looks best on paper is almost never the one that sounds the best. The ear is the best testing device and--really--the only one that counts. But some customers want to see these numbers, so we list them below. Please note that we are probably the only company that doesn't spend weeks and weeks trying to make them look better. In fact, we pay almost no attention to them at all. We sell the prototype that sounds best, not the one that looks best on paper. Of course, the spec sheet is still valuable, but mostly for the dimensional drawing.
Please note that these are 'free air' specifications. When you put these DIY full range speakers in a cabinet, you can expect bass response much lower than the bass figure listed. How much, depends on the cabinet you use. The efficiency, when mounted in cabinets, will also be 3 to 4 dB higher, in most cabinets. All Audio Nirvana speakers can be considered super high efficiency. Average listening level is 1/10 of a watt--yes, that's not a misprint.
Speaker cabinets exist for one reason only--to produce bass. Mids and highs are the same in any cabinet or open baffle. Cabinets are best designed by using your experience, building many prototypes, and listening. And this is the way we do it. Also, please note that full range speakers, which have very short excursions (Xmax), require much different cabinet tuning than normal woofers do. Few speaker designers understand this.
The Audio Nirvana 'Super 8' ($295/pr) has a test bench frequency response from 56 hz to almost 20,000 hz (varies by temperature and lower when mounted in cabinets). You can expect at least 98 db efficiency in any of our cabinets. It handles 30 watts continuous RMS (normal listening level will be about 1/10 watt). Impedance is 8 ohms. Voice coil is 1.4 inches (35.5mm). Magnet weight is 3.2 lbs. Total weight is 9 lbs. The cone is made of paper. The surround is accordion style and made of treated cloth. The phase plug is copper anodized, machined solid aluminum. The frame is round cast aluminum.
The Audio Nirvana 'Super 15' ($695/pr) has a test bench frequency response from 31 hz to almost 16,000 hz (varies by temperature). You can expect at least 100 db efficiency in any of our cabinets. It handles 50 watts continuous RMS (normal listening level will be about 1/10 watt). Impedance is 8 ohms. Voice coil is 2.0 inches (50 mm). Magnet weight is 4.3 lbs. Total weight is 17 lbs. The cone is made of paper. The surround is accordion style and made of treated cloth. The phase plug is copper anodized, machined solid aluminum. The frame is cast aluminum.

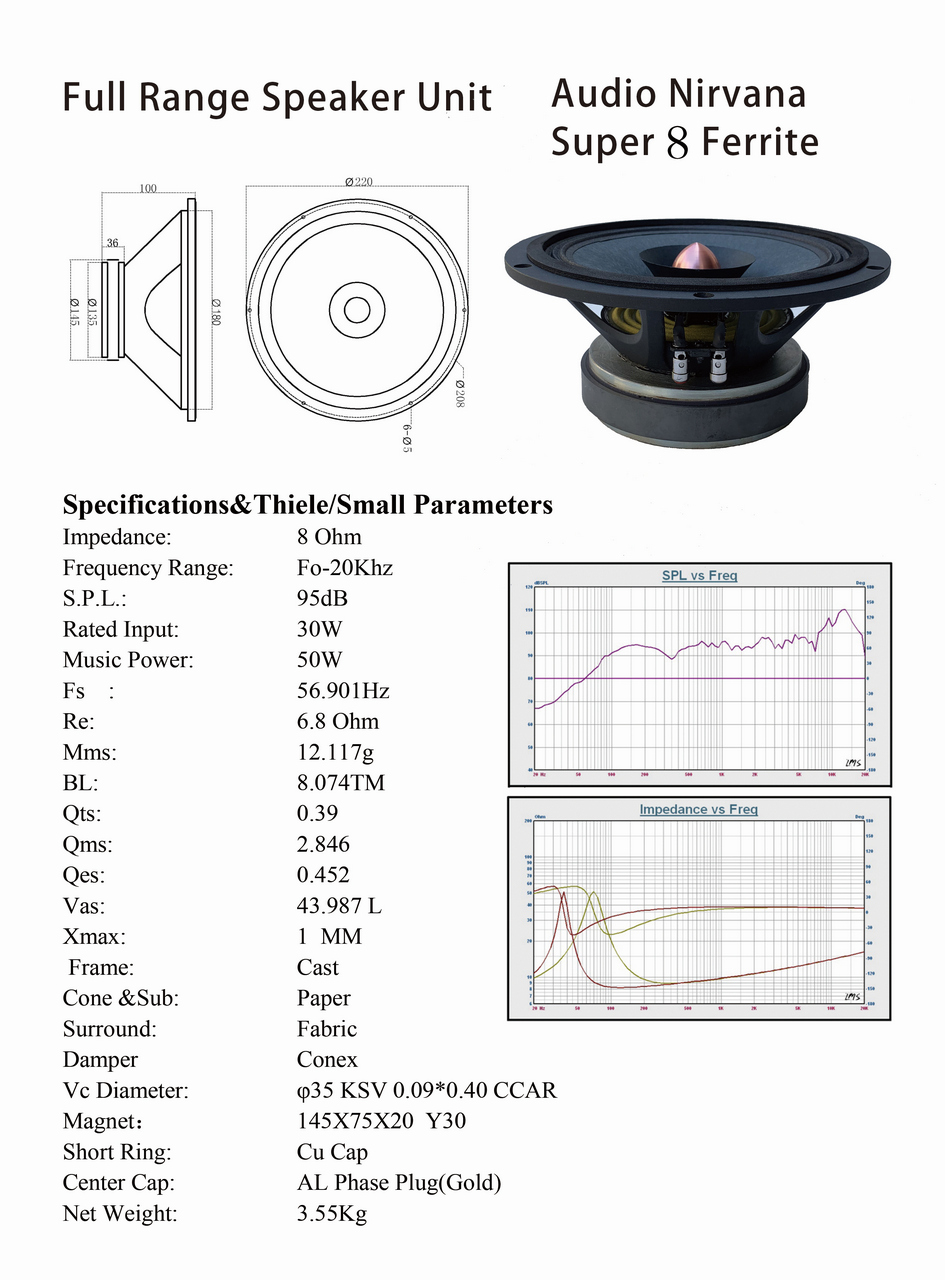

SUPER Series Data Sheets
Audio Nirvana, Lowther, High Efficiency DIY Full Range Speaker Kits
BUY NOW
--Best Sound, Quality, Price, and Guarantee--
Audio Nirvana Full Range Speakers
FREE SHIPPING IN THE USA
(Discount shipping overseas)
100% MONEY BACK GUARANTEE
| Super 8
|
| $295/pr |
| Super 15
|
| $695/pr |
Super 8 ($295/pr)
Super 15 ($695/pr)
Audio Nirvana SUB 8 Subwoofer--Optimized for Music
Audio Nirvana MUSICAL SUB 8--60 watts RMS (100 watts peak), 20-150 Hz, Down Firing Subwoofer
$499 with free USA shipping
100% MONEY BACK GUARANTEE

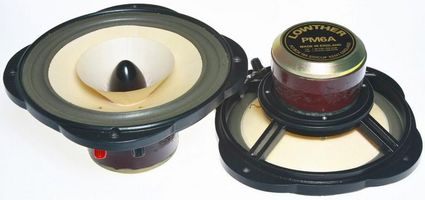

(all other Lowther models available too)
$1495/pair with free USA shipping

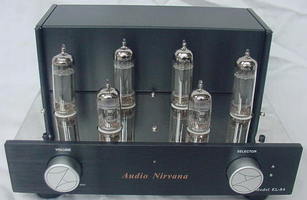

Factory Built and Tested

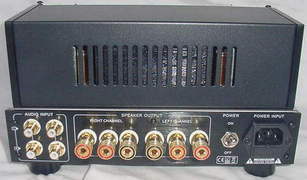

115 and 230 volt selector
10 watts per channel, 20 lbs (9 kg)
$699 w/free shipping in the US
100% money back guarantee
Plans Only (free with any speaker purchase)
($25)
